Atlas

Atlas automates the provisioning of a 3-node Kubernetes cluster (1 Controller, 2 Workers) and a dedicated Monitoring node on AWS. Architectural decisions prioritize a zero-trust perimeter, infrastructure reproducibility via IaC, and survivable observability independent of the K8s cluster itself.

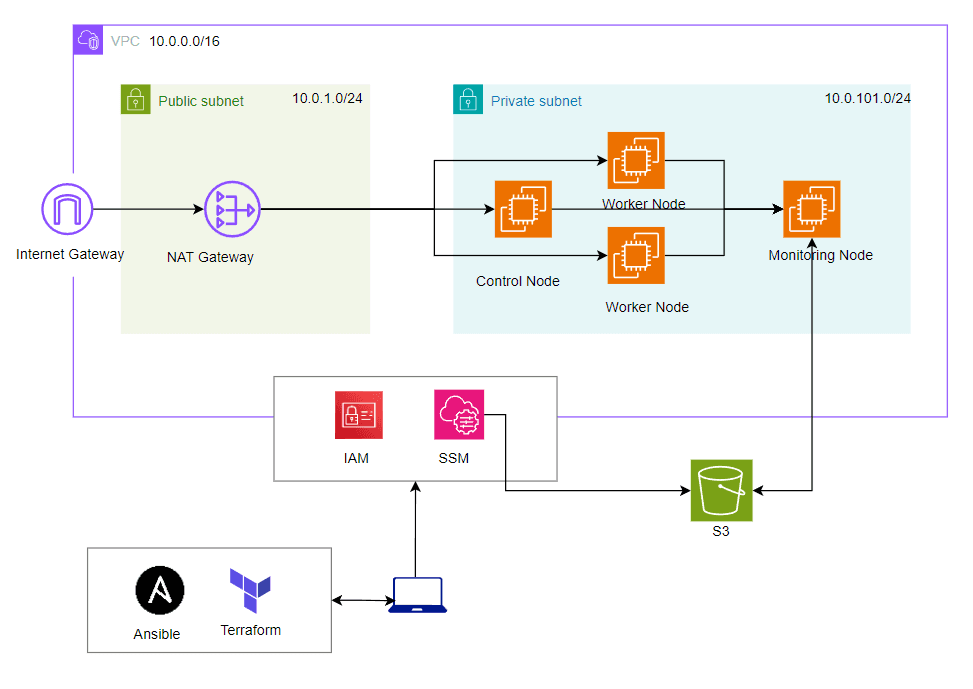

Built on a Zero-Public-Port model — no SSH (Port 22) is ever opened on any node.

• All instance access managed exclusively via AWS SSM Session Manager
• Identity-Based Access using IAM roles — no long-term AWS keys stored on hosts
• Private subnets only — no EC2 instances carry public endpoints
• IAM roles scoped per workload (controller, worker, monitoring node)
• All administrative access is fully auditable via AWS CloudTrail

All cloud resources are provisioned and managed via Terraform, ensuring reproducibility and controlled change management across environments.

• AWS VPC with private subnets, route tables, NACLs, and security groups
• IAM roles and instance profiles scoped per node type
• S3 buckets for serverless log and trace persistence
• SSM Parameter Store auto-populated by Terraform — consumed dynamically by Ansible for zero hardcoded IPs
• EC2 instances: 1 Controller, 2 Workers, 1 Monitoring node

Ansible playbooks automate the full Kubernetes cluster lifecycle — from OS hardening to cluster bootstrapping — across all five sequential phases via a single Master Orchestrator playbook.

• Automated Kubernetes v1.29 installation across all nodes
• Production-grade OS hardening: swap management, kernel network optimizations (bridge-nf-call-iptables)
• Flannel CNI for internal cluster pod networking
• site.yaml Master Orchestrator executes all 5 phases in sequence
• Dynamic inventory powered by SSM Parameter Store — no hardcoded configuration

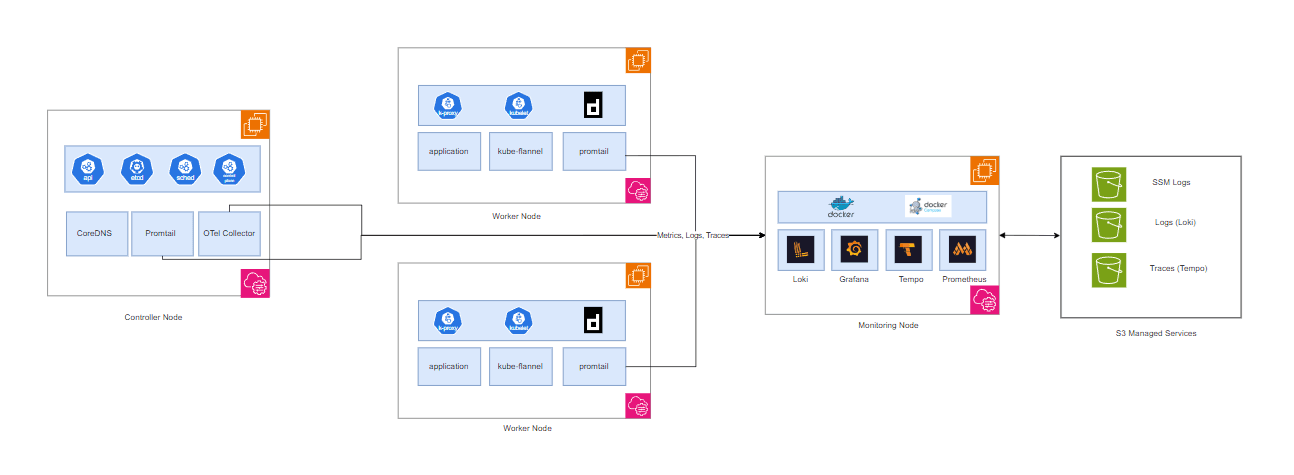

A standalone monitoring node runs the LGTM+P stack, engineered to survive independently of the Kubernetes cluster. Logs and traces are persisted to S3 for infinite scalability.

• Loki: log aggregation and querying
• Grafana: dashboarding and unified visualization
• Tempo: distributed trace collection and storage
• Prometheus: metrics scraping and alerting
• S3-backed persistence for logs and traces — 99.999999999% durability
• Mock log/trace generators deployed via Ansible to validate the full end-to-end telemetry pipeline

Private, encrypted access to the monitoring dashboard is provided through a custom SSM tunnel utility — no bastion host required.

• atlas-console.sh: SSM Port Forwarding tunnel exposing Grafana at localhost:3000
• No jump server or bastion host — SSM fully replaces traditional SSH access patterns
• Operational access logs captured in AWS CloudTrail for full auditability
